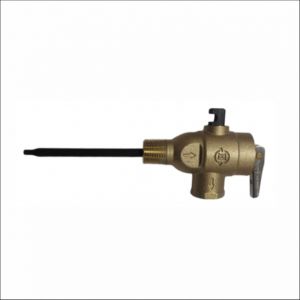

Pressure & Temperature Relief Valve

Standard complying with: AS 1357.1
Connection spec: DN15, DN20
Pressure spec: 700Kpa, 850Kpa, 1000Kpa, 1200Kpa, 1400Kpa
Opening temperature range: 93-99

Features

During the heating or working process of the boiler, the temperature of the cold water inside the boiler will rise so that the pressure and the temperature raise, the valve installled onto the boiler will open to drain hot water(stream) out to relief overabundant pressure and hot water(stream) at rather high temperature, to ensure the safety of the boiler, save energy and extend the life of the boiler when the pressure rises up to the valve's setting temperature.

Bronze body
SUS304 spring
Plastic Auxiliary pressure-relief device
R1/2/R3/4Inlet & Rp1/2/Rp3/4Outlet
Open Temperature: 93℃~99
Open  Pressure:
    700Kpa,850Kpa,1000Kpa,1200Kpa,1400Kpa
  Conform to AS1357.1
